Fire water collector, fire water pump adapter, fire department intet connector

Fire water collector, fire water pump adapter, fire department intet connector
Product Introduction:

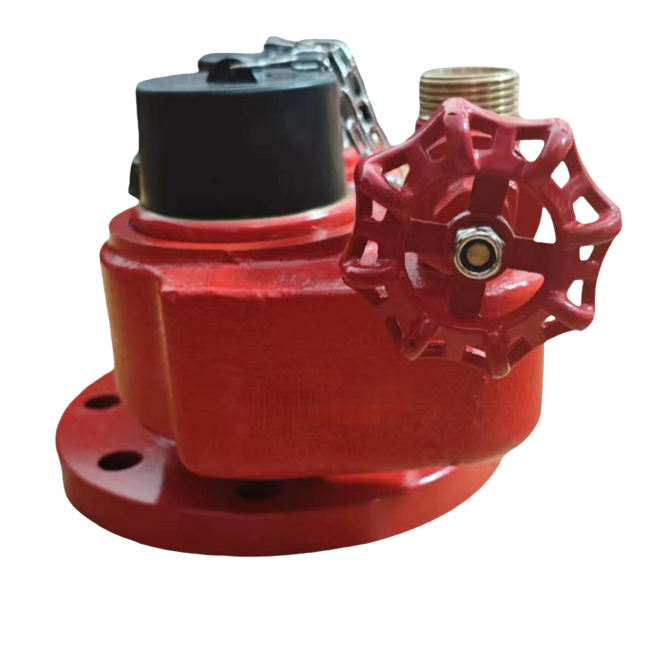

Spark Dual-Interface Fire Pump Adapter (DN65)
This is Spark’s DN65 dual-interface fire pump adapter, a core emergency auxiliary device for building fire water supply systems, widely used in fire pipeline networks of high-rise buildings and large factories. As a connection interface between external fire water sources (fire trucks, mobile pumps) and the internal fire system of buildings, it is equipped with dual fire interfaces and control valves, enabling quick connection to external water sources to ensure continuous water supply for the internal fire pipeline network during fires. Made of cast steel + brass with a fire-specific red coating, it combines structural reliability and anti-corrosion performance, serving as a key equipment for building fire emergency support.
Send Inquiry
Description
Technical Parameters
Products Description
1



Fire water collector, fire water pump adapter, fire department intet connector

Spark Dual-Interface Fire Pump Adapter (DN65)
This is Spark’s DN65 dual-interface fire pump adapter, a core emergency auxiliary device for building fire water supply systems, widely used in fire pipeline networks of high-rise buildings and large factories. As a connection interface between external fire water sources (fire trucks, mobile pumps) and the internal fire system of buildings, it is equipped with dual fire interfaces and control valves, enabling quick connection to external water sources to ensure continuous water supply for the internal fire pipeline network during fires. Made of cast steel + brass with a fire-specific red coating, it combines structural reliability and anti-corrosion performance, serving as a key equipment for building fire emergency support.



Products Features

  1. Applicable Scenarios: Fire pipeline networks of high-rise buildings, fire systems of large industrial buildings
  2. Structure Type: Dual-interface fire pump adapter (including control globe valve)
  3. Connection Standard: Bottom flange (compatible with DN100 fire riser); interfaces are BS336/national standard fire quick connectors
  4. Anti-Corrosion Standard: Fire-specific red surface coating, salt spray test ≥300 hours
  5. Adaptable Systems: Wet/pre-action/dry building fire pipeline networks




Technical Parameter
Category Parameter Details
Nominal Diameter Interface DN65; Bottom flange DN100
Nominal Pressure PN16 (1.6MPa)
Body Material Valve body (cast steel) + interface (brass)
Compatible Medium Fire water
Operating Temperature -10℃~60℃
Interface Type Dual BS336 fire quick connectors (with dust cover)
Control Component Brass globe valve (handwheel on-off)
Installation Method Flange bolt connection



FAQ

Q: What is an Instantaneous Fire Hose Coupling?

A:An Instantaneous Fire Hose Coupling is a device that allows firefighters to quickly attach and detach hoses to fire hydrants. It is an essential component of a fire hose and helps firefighters respond quickly and efficiently to fires.

Q:How does an Instantaneous Fire Hose Coupling work?

A:The mechanism of an Instantaneous Fire Hose Coupling is simple. It consists of two parts, the male and female coupling, which are fitted into the ends of the hoses. When the two couplings are brought together, they lock into place, and water can flow from the hydrant through the hose.

Q:What are the advantages of using an Instantaneous Fire Hose Coupling?

A: The primary advantage of using an Instantaneous Fire Hose Coupling is that it allows for quick and easy attachment and detachment of hoses. This is essential in an emergency as it helps firefighters save crucial time and respond faster.

Q:How often should Instantaneous Fire Hose Couplings be inspected?

A:Instantaneous Fire Hose Couplings should be inspected regularly, and any damage should be immediately repaired or replaced. A visual inspection before each use is essential to ensure that there are no cracks or leaks in the coupling or hose.

Q: What is the maintenance method for Instantaneous Fire Hose Couplings?

A: The Instantaneous Fire Hose Couplings needs to be cleaned and inspected regularly to prevent wear and cracks and to avoid prolonged exposure to sun and rain.
