Hard Seal Flange Gate Valve for Gas Water Oil Heavy Duty Manual Valve Z41H-16C Cast Steel Normal Tem

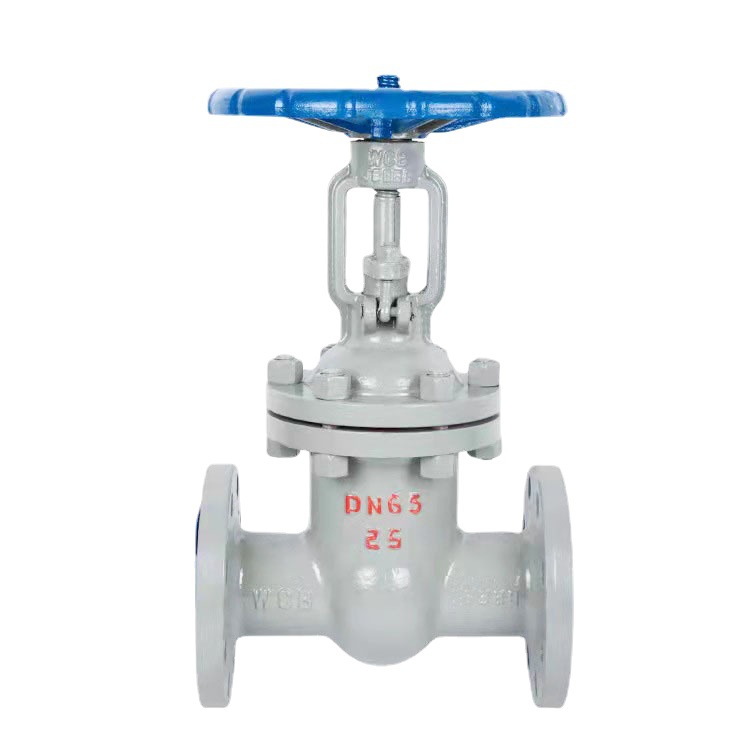

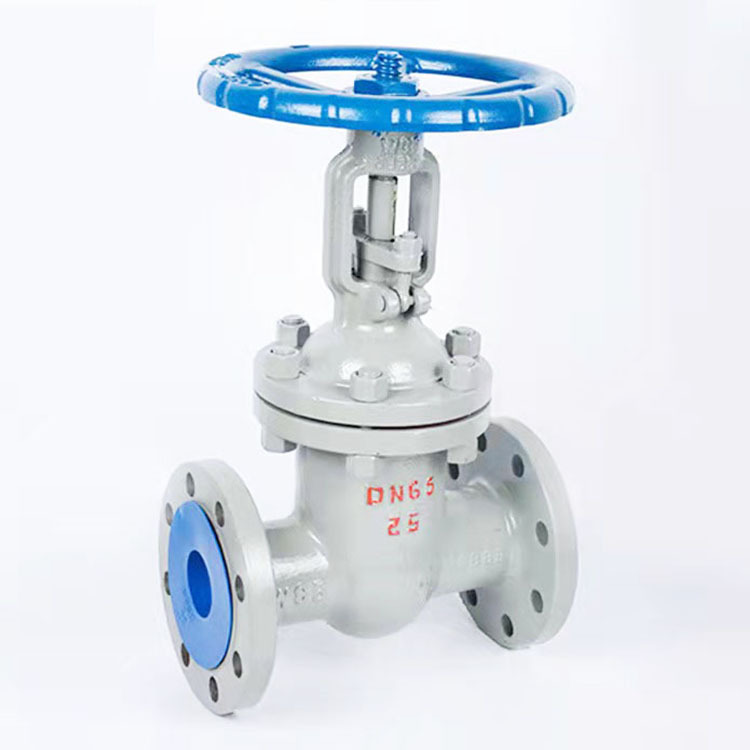

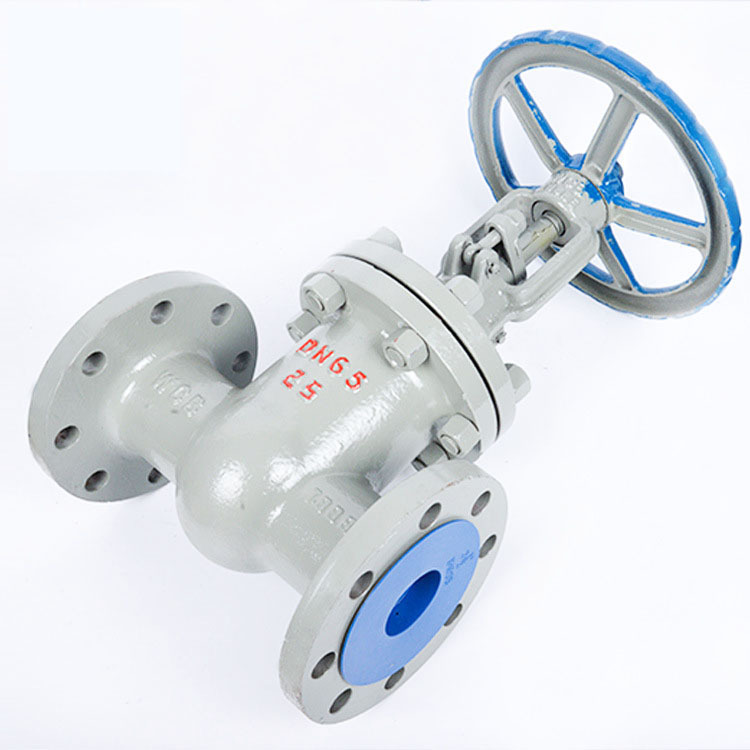

Product Name: Spark DN65 Cast Steel Flanged OS&Y Gate Valve
This is Spark’s DN65 cast steel flanged outside screw & yoke (OS&Y) gate valve, a core on-off control component for industrial fluid pipelines—widely used in scenarios such as chemical pipelines, oil transportation systems, power auxiliary water networks, and industrial process pipelines. Made of cast steel WCB, it has excellent temperature/pressure resistance and corrosion resistance, adapting to multiple industrial media; the OS&Y handwheel design allows intuitive judgment of the valve’s opening/closing status, the flange connection adapts to industrial standard pipelines, and the metal hard-seal structure ensures reliable sealing during on-off operations. It is a highly reliable equipment for pipeline on-off control in industrial scenarios.

Hard Seal Flange Gate Valve for Gas Water Oil Heavy Duty Manual Valve Z41H-16C Cast Steel Normal Tem

Specification

Technological Parameters

Basic Parameters
- Nominal Diameter: DN65
- Applicable Systems: Chemical pipelines, oil transportation systems, power auxiliary water networks, industrial process pipelines
- Body Material: Cast steel WCB (main body), stainless steel (seals)
- Connection Type: Flange connection (compatible with GB/T 9115 industrial flange standard)
- Appearance Color: Main body (gray), handwheel (blue)
Performance Parameters
- Rated Working Pressure (PN): 25 (corresponding to 2.5MPa)
- Compatible Media: Oil, weak acid/alkali solutions, industrial water, general industrial fluids
- Applicable Temperature Range: -29℃~425℃
- Opening/Closing Operation: OS&Y handwheel (0° fully closed ~ 90° fully open)
Functional Configuration
- Core Function: Industrial pipeline on-off control
- Sealing Feature: Metal hard seal (compatible with high-pressure/high-temperature working conditions)
- Operation Advantage: OS&Y design (intuitively displays opening/closing status)
- Certification Standards: CE, API 600 (industrial valve standard certification)

Port Size	DN50-DN400
Structure	Gate
Application	General
Place of Origin	Fujian, China
Power	Manual
Customized support	OEM,OBM, ODM
Warranty	2 years
Temperature of Media	Normal Temperature/High temperature
Media	Water, weakly corrosive media, etc
Nominal pressure	PN16/PN40

Frequently Asked Question

FAQ

What is a pressure relief valve?

The Forede pressure relief valve (PRV) is a mechanical device that releases gas or liquid from a system when the pressure exceeds a predetermined limit. PRVs are used to prevent over-pressurization, which can damage machinery or people

What is the purpose of pressure relief valve?

The PRV Pressure relief valve is a safety device that prevents a system from becoming dangerously pressurized by automatically releasing excess pressure. PRVs are used in many industrial settings, including power plants, chemical plants, and refineries, as well as in boilers, tanks, and pipelines.

How should i install the pressure relief valve?

The pressure relief valve came with flange end connection, please inform us the flange standard you need before placing the order to ensure the PRV valve could compatible with exist system.

What is the shipping methods?

It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.

How can i get price?

We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
