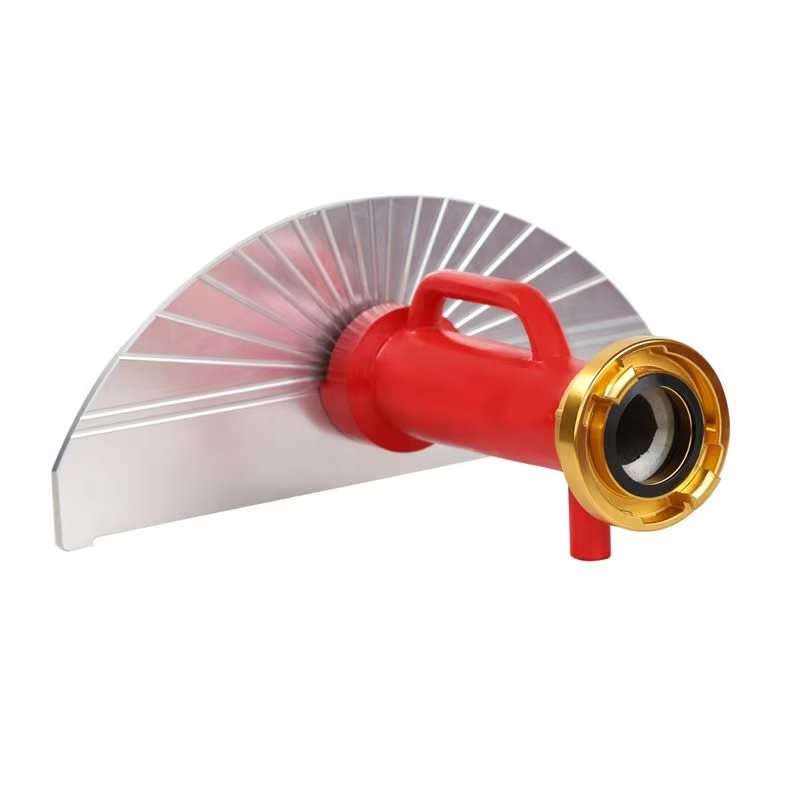

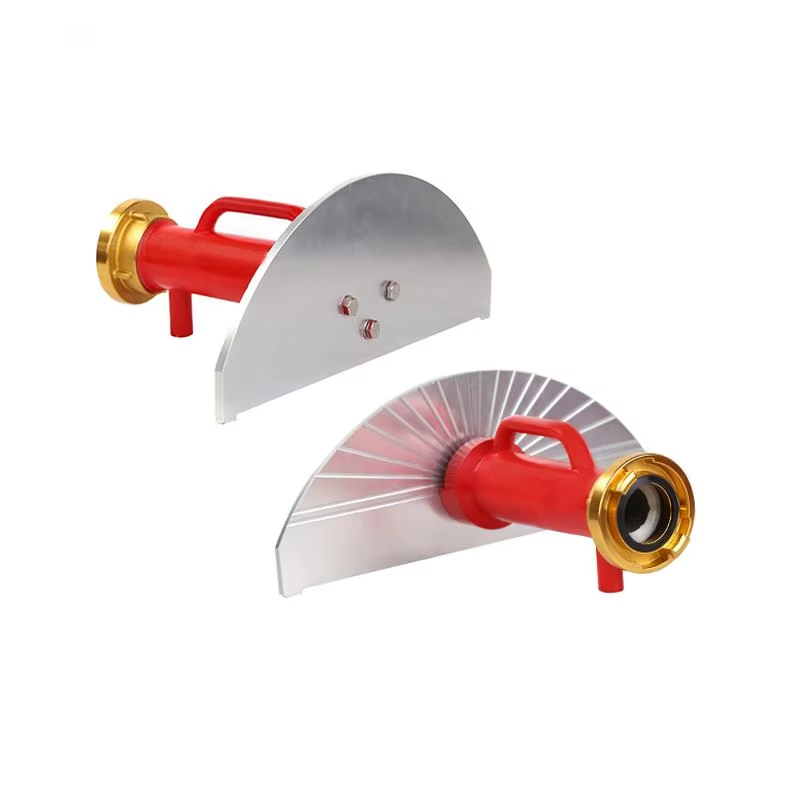

Spark Fire Fan Spray Water Gun
This is Spark’s fire fan spray water gun, a core handheld equipment for fire extinguishing and emergency rescue—widely used in scenarios such as building initial fires, initial oil fires, and initial electrical equipment fires. It adopts a fan-shaped diffuser design, which can convert fire water into a large-area spray, integrating multiple effects of cooling, fire extinguishing, and covering suffocation; the gun body is made of lightweight high-strength material, enabling flexible and labor-saving handheld operation, and is compatible with standard fire hose interfaces. It is an efficient and practical equipment for firefighters to quickly handle initial fires.





1. Basic Parameters
   • Applicable Scenarios: Building initial fires, initial oil/electrical equipment fires, emergency rescue sites
   • Body Material: Gun body (high-strength aluminum alloy); diffuser (stainless steel); interface (brass)
   • Connection Interface: Compatible with DN65 standard fire hose interface
   • Appearance Color: Gun body (red); interface/components (gold)
2. Performance Parameters
   • Working Pressure Range: 0.3MPa~0.8MPa
   • Maximum Spray Coverage Width: ≥3m (at 5m jet distance)
   • Spray Mode Jet Distance: ≥8m
   • Ambient Temperature Adaptation: -10℃~60℃
3. Functional Configuration
   • Core Function: Fan spray fire extinguishing (cooling + covering suffocation)
   • Operation Mode: Single-hand grip / double-hand auxiliary operation
   • Adaptation Standard: Universal fire hose interface
   • Certification Standard: Special fire product certification



Model	Materia	Inlet Size	W.P	Water Wall size	Water Wall Angle
WN-6/500	Hard anodized Aluminum Alloy	1.5”/40mm	6bar	78ft wight,23ft high	180°
WN-6/800	Hard anodized Aluminum Alloy	2”/50mm	6bar	85ft wight,26ft high	180°
WN-6/1000	Hard anodized Aluminum Alloy	2.5”/65mm	6bar	88ft wight,29ft high	180°





Spark Fire Fan Spray Water Gun Launches | A New Large-Area Efficient Fire Extinguishing Tool for Initial Fires

Fire equipment brand Spark has launched the fire fan spray water gun, featuring "large fan coverage + multi-effect fire extinguishing" as core advantages—it has become a new choice for firefighters to handle initial fires.

Designed for the needs of "rapid control and coverage extinguishing" in initial fires: the fan-shaped diffuser can convert fire water into a wide spray, covering a width of more than 3m at a 5m jet distance, integrating cooling and suffocation fire extinguishing effects, especially suitable for handling initial fires such as oil and electrical equipment; the gun body is made of high-strength aluminum alloy, which is lightweight and flexible to operate, compatible with DN65 standard fire hose interfaces, and can be directly connected to existing fire water supply systems without additional adaptation equipment.

Certified by the special fire product certification, this product complies with fire equipment safety specifications and adapts to complex ambient temperatures of -10℃~60℃. Currently, this fan spray water gun is officially available on Spark’s self-built website, supporting bulk purchasing and fire equipment supporting consulting.
