Brass Sprinkler Head Fire Sprinkler System UL CE Fire Protection System NPT Thread K14 ESFR Pendent

Brass Sprinkler Head Fire Sprinkler System UL CE Fire Protection System NPT Thread K14 ESFR Pendent
Product Introduction:

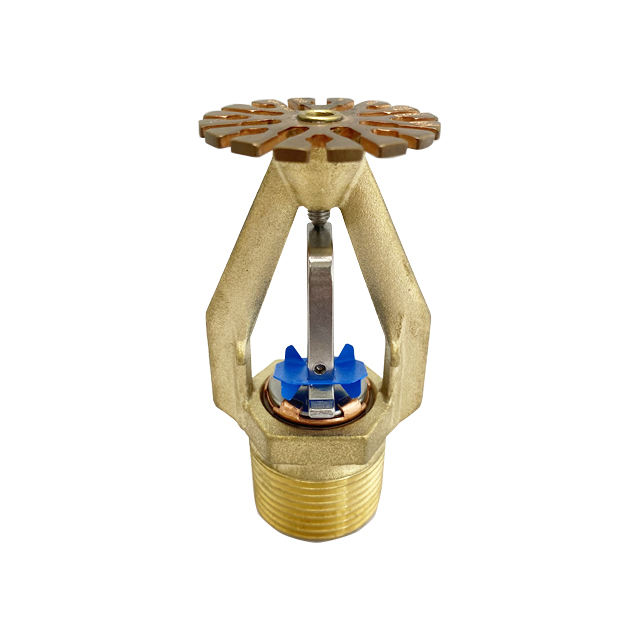

ESFR K363 Early Suppression Fast Response (ESFR) Sprinkler: The Fire Protection Guardian for High-Rack Warehouses
This is an ESFR K363 Early Suppression Fast Response Sprinkler, specifically designed for high-rack and high-pile warehouses. It serves as a core fire-extinguishing component in fire protection systems for large-scale storage facilities.
Core Capabilities: "Early Suppression + Rapid Fire Control"
Fast Response: Equipped with a 74°C fusible alloy temperature-sensitive element, it has a Response Time Index (RTI) ≤ 28 (m·s)^0.5, activating within seconds at the initial stage of a fire.
High-Flow Extinguishing: With a discharge coefficient K=363, it delivers large-diameter, high-energy water droplets that can penetrate flames to cool burning materials, suppressing fire spread at its source.
Application Scenarios & Advantages
High-Bay Protection: A single sprinkler covers up to 9.3㎡, protecting warehouses with roof heights up to 13.5m and pile heights up to 12m—no additional in-rack sprinklers are required.
Scenario Compatibility: Suitable for high-pile storage of goods like cartons, plastics, and rubber tires, covering Class I-IV commodity warehouses. It is a "standard protection solution" for logistics and e-commerce storage facilities.
Key Specifications
Connection: DN25 (1-inch) thread, compatible with mainstream fire protection pipelines.
Operating Pressure: 0.14-0.34MPa, maximum pressure resistance of 12bar.
Material: Full brass body, corrosion-resistant, suitable for low-temperature/normal-temperature storage environments.
Certifications: Complies with GB5135.9 standards, certified by UL/FM/3C fire safety certifications.
Its core value lies in replacing traditional multi-sprinkler setups with "single-sprinkler wide coverage + high-flow water discharge", significantly reducing the installation and maintenance costs of high-bay fire protection systems while achieving more efficient early fire suppression.
Send Inquiry
Description
Technical Parameters
Products Description

Brass Sprinkler Head Fire Sprinkler System UL CE Fire Protection System NPT Thread K14 ESFR Pendent

Brass Sprinkler Head Fire Sprinkler System UL CE Fire Protection System NPT Thread K14 ESFR Pendent



ESFR K363 Early Suppression Fast Response (ESFR) Sprinkler: The Fire Protection Guardian for High-Rack Warehouses
This is an ESFR K363 Early Suppression Fast Response Sprinkler, specifically designed for high-rack and high-pile warehouses. It serves as a core fire-extinguishing component in fire protection systems for large-scale storage facilities.
Core Capabilities: "Early Suppression + Rapid Fire Control"
Fast Response: Equipped with a 74°C fusible alloy temperature-sensitive element, it has a Response Time Index (RTI) ≤ 28 (m·s)^0.5, activating within seconds at the initial stage of a fire.
High-Flow Extinguishing: With a discharge coefficient K=363, it delivers large-diameter, high-energy water droplets that can penetrate flames to cool burning materials, suppressing fire spread at its source.
Application Scenarios & Advantages
High-Bay Protection: A single sprinkler covers up to 9.3㎡, protecting warehouses with roof heights up to 13.5m and pile heights up to 12m—no additional in-rack sprinklers are required.
Scenario Compatibility: Suitable for high-pile storage of goods like cartons, plastics, and rubber tires, covering Class I-IV commodity warehouses. It is a "standard protection solution" for logistics and e-commerce storage facilities.
Key Specifications
Connection: DN25 (1-inch) thread, compatible with mainstream fire protection pipelines.
Operating Pressure: 0.14-0.34MPa, maximum pressure resistance of 12bar.
Material: Full brass body, corrosion-resistant, suitable for low-temperature/normal-temperature storage environments.
Certifications: Complies with GB5135.9 standards, certified by UL/FM/3C fire safety certifications.
Its core value lies in replacing traditional multi-sprinkler setups with "single-sprinkler wide coverage + high-flow water discharge", significantly reducing the installation and maintenance costs of high-bay fire protection systems while achieving more efficient early fire suppression.

Spark Launches New Fire Sprinkler Heads: Multi-Spec, High Compatibility to Boost Building Safety

Fire safety equipment brand Spark has recently unveiled its new K5.6 series fire sprinkler heads. Built with durable brass material and designed for broad compatibility across specs, these sprinklers serve as a practical protective solution for various building fire protection systems.

Multi-Spec Coverage for Diverse Scenarios

Featuring a DN15 connection, the series offers three size options (1/2”, 3/4”, 1”) to seamlessly integrate with mainstream fire protection pipelines. With an activation temperature range of 68°C–141°C (155°F–286°F), it meets both general fire safety needs in residential and commercial spaces (e.g., malls, homes) and high-temperature protection requirements in industrial environments.

Crafted from brass with a chrome-plated finish, the sprinklers balance corrosion resistance and longevity. They are compatible with wet and dry fire systems, making them suitable for commercial buildings, industrial workshops, and residential properties alike.

Quality & Compliance Backed by Global Standards

The Spark K5.6 sprinklers have earned CE certification and comply with international industry standards including ANSI, BS, and DIN—ensuring their materials and performance meet professional fire safety equipment requirements. Free of hazardous chemicals, they are safe for installation and operation.

Customizable Solutions for Tailored Needs

To accommodate project-specific configurations, the series offers customizable services—parameters can be adjusted based on building structures and fire safety codes, streamlining project adaptation.

As a new addition to Spark’s fire safety terminal equipment lineup, these sprinklers stand out for their multi-spec design, strong compatibility, and customizability. They provide flexible, reliable protection for building fire systems and are now available on the brand’s official website.



Products Parameters
Application Fire Sprinkler System Customizable Yes
Material Brass Place of Origin China
Hazardous Chemical No Brand Name Spark
Model Number DN15 Application Fire Fighting Sprinkler Head
Size 1/2" 3/4" 1" Temperature 68-141C / 155-286F
Certificate CE Product Name Fire Fighting Sprinkler Head
Surface Treatment Brass Chrome Usage Fire Fighting System
Type K5.6 Sprinkler Head Standard ANSI BS DIN



How To Cooperate With Us?

Dear Customer, welcome to contact us



Our address

-China



Phone Number:+8615159553510



E-mail:fionahong.sunfor@gmail.com













Hot Tags: spray fire nozzle, China, manufacturers, suppliers, wholesale, price, Automatic Fire Nozzle, Groove Type Alarm Valve, Fog Spike Misting Fire Nozzle, Angle Flange Landing Valve, Sidewall Glass Bulb Fire Sprinklers Heads, Mobile Foam Tank

Technical Specifications of ESFR K363 Early Suppression Fast Response Sprinkler 1. Thermal Activation Performance Actuation Temperature: 74°C (165°F) Activation Element: Fusible alloy link (RTI ≤ 28 (m·s)^0.5, classified as Fast Response) 2. Hydraulic Performance Discharge Coefficient (K-factor): K=363 (US gpm/psi^0.5) / K=51.7 (L/min·bar^0.5) Operating Pressure Range: 0.14 MPa (20 psi) to 0.34 MPa (50 psi) Maximum Allowable Working Pressure (MAWP): 1.2 MPa (12 bar / 175 psi) 3. Installation & Coverage Connection Size: 1-inch NPT (DN25) male thread Maximum Coverage Area per Sprinkler: 9.3 m² (100 ft²) Applicable Warehouse Dimensions: Max ceiling height: 13.5 m (44 ft) Max storage pile height: 12 m (39 ft) Mounting Orientation: Upright (only, for ceiling installation) 4. Material & Construction Body Material: Solid brass (corrosion-resistant, suitable for dry/wet pipe systems) Deflector Material: Brass (optimized for high-velocity water distribution) Sealing Component: EPDM rubber (leak-proof under working pressure) 5. Certifications & Compliance Standards Compliance: GB 5135.9 (China National Standard) NFPA 13 (US National Fire Protection Association) Certifications: CE, 3C Certified (China Compulsory Certification) 6. System Compatibility Suitable Fire Protection Systems: Wet pipe systems (primary) / Dry pipe systems (with temperature ≥ 4°C) Applicable Commodity Classes: Class I, II, III, IV (per NFPA 13)
